e.wave Measurement and Testing System

- 4 to 8 input channels for universal bridge, general purpose analogue signals, digital signals
- up to 8 output channel for voltage, digital signals
- to be used as data acquisition, measuring and testing without host or PC
- available with PAC function

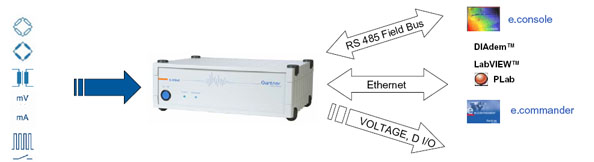

- Data exchange over Ethernet , RS 485 Field bus
- PLUG & PLAY function with DIAdem™ , PLab, e.commander, e.console
- Data acquisition Rate 10 …. 10.000 samples/ seconds

e.wave Measurement and Testing System

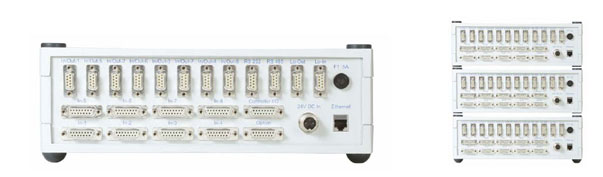

- Extendable by additional e.wave boxes via (Lo-Out, Lo-In) to 32 Channel for bridge, general purpose input channels
- Sensors connection by 15- pin SUB D (In-1 to In-8); analog out / digital I/O by 9- pin SUB D (In/Out-1 to In/Out-8)
- Size of box (W x H x D ; mm) 330 x 120 x 270; supply Voltage 24 V DC; EMV resistant metallic housing
Available e.wave versions:
e.wave 8 channel carrier frequency, sample rate up to 100 cycles/second
e.wave 8 universal channel, sample rate up to 100 cycles/second
e.wave 6 channel carrier frequency, sample rate up to 1000 cycles/second, PAC integrated
e.wave 8 universal channel, sample rate up to 1000 cycles/second, PAC integrated
e.wave 4 channels carrier frequency and 4 universal channels; sample rate up to 10000 cycles/ second; PAC integrated
