LTT SensorCorder

The LTT SensorCorder is a mobile measurement System with 8 or 16 galvanic seperated Strain Gauge, Volt and ICP inputs (cascadable up to 4096).

The LTT SensorCorder is a mobile measurement System with 8 or 16 galvanic seperated Strain Gauge, Volt and ICP inputs, which are adjustable - it depends of the senosor - with the software LTTpro. Measurement resolution is 16 bits.

The maximum sample rate is 500 KHz per channel. The galvanic isolation works in the frequency range of 0 to 50 kHz. Automatic auto zero, analog and digital input filter, internal shunt calibration, quarter, half and fullbridge connection and  AC / DC-coupling complete the system.

The internal memory is upgradable from 4 MS per channel up to 16 MS per channel. The system was developed especially for ultrafast long- and short time measurements. The system is connected with the ethernet (1000/100/10 BaseT), WLAN, SCSI, USB or Fire Wire to a PC. Using the DLL you can integrate other applications, for example FAMOS, LabView, DIAdem, MATLAB, Mgraph.

The LTT SensorCorder is customizable for your needs. The system is available

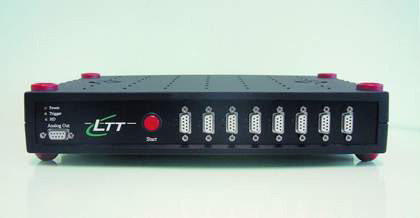

·         as compact black box with 8 or 16 channels,

·         units are cascadable up to 4096 channels!

·         An internal HDD (40 GB, optional) allows for PC independent operation.

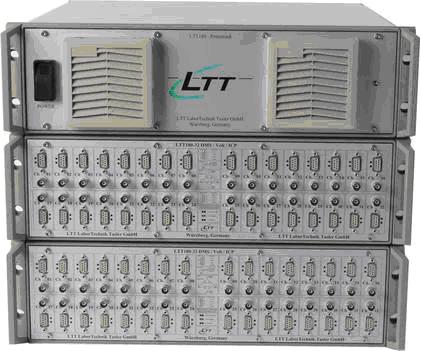

·         A 19" Rack in silverdesign (per rack 32 channels).





Screenshots of LTTview Software
