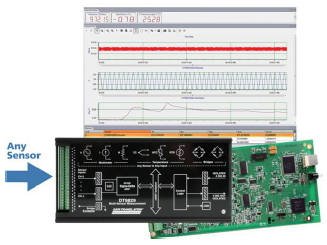

DT9829 스트레인 측정 DAQ
- 스트레인 및 전압,전류,온도,저항,써미스터등 멀티입력 8채널 DAQ
 - Full-, Half-, Quarter- Bridge-Based 측정
- 24-Bit, 960Hz ADC 샘플링 - 500V 갈바닉 절연
- 외부 브리지 박스없이 매우 쉽게 스트레인게이지 결선

           DT9829의 동영상보기

Key Features:
  • Direct connection of many types of sensors...software selectable per channel
    • Thermocouples: B, E, J, K, N, R, S, and T types
    • RTD: PT100, PT500, PT1000...2, 3, 4-wire
    • Thermistors
    • Bridge-based sensors: internal 3.0VDC excitation, ±200mV input range
    • Voltage: ±10V, ±2V, ±200mV input range
    • Current: ±25mA
    • Resistance: 0 to 200k ohm
  • Each input channel independent...any sensor on any channel, no interaction
  • Sampling to 960 Hz
  • 24-bit Delta-Sigma ADC...eliminates aliasing for extremely accurate measurement
  • Thermocouple CJC and open circuit detection
  • 4 isolated digital inputs and digital outputs
  • ±500V galvanic isolation...to PC and ground
  • USB 2.0 powered...no extra power supply needed
  • Terminal block connections
  • Supported by application software
