Q.bloxx system 이동형 스트레인 데이터수집시스템 제작
- 고객 맞춤형 스트레인 데이터로거
- 이동성을 고려하여 원하는 채널수로 고객 맞춤형으로 제작
- 고객요구설계 반영가능
- 간트너사 제품모듈 사용하므로 신뢰성 확보
- Q.bloxxA106 또는 Q.bloxxA107 원하는 모듈로 제작

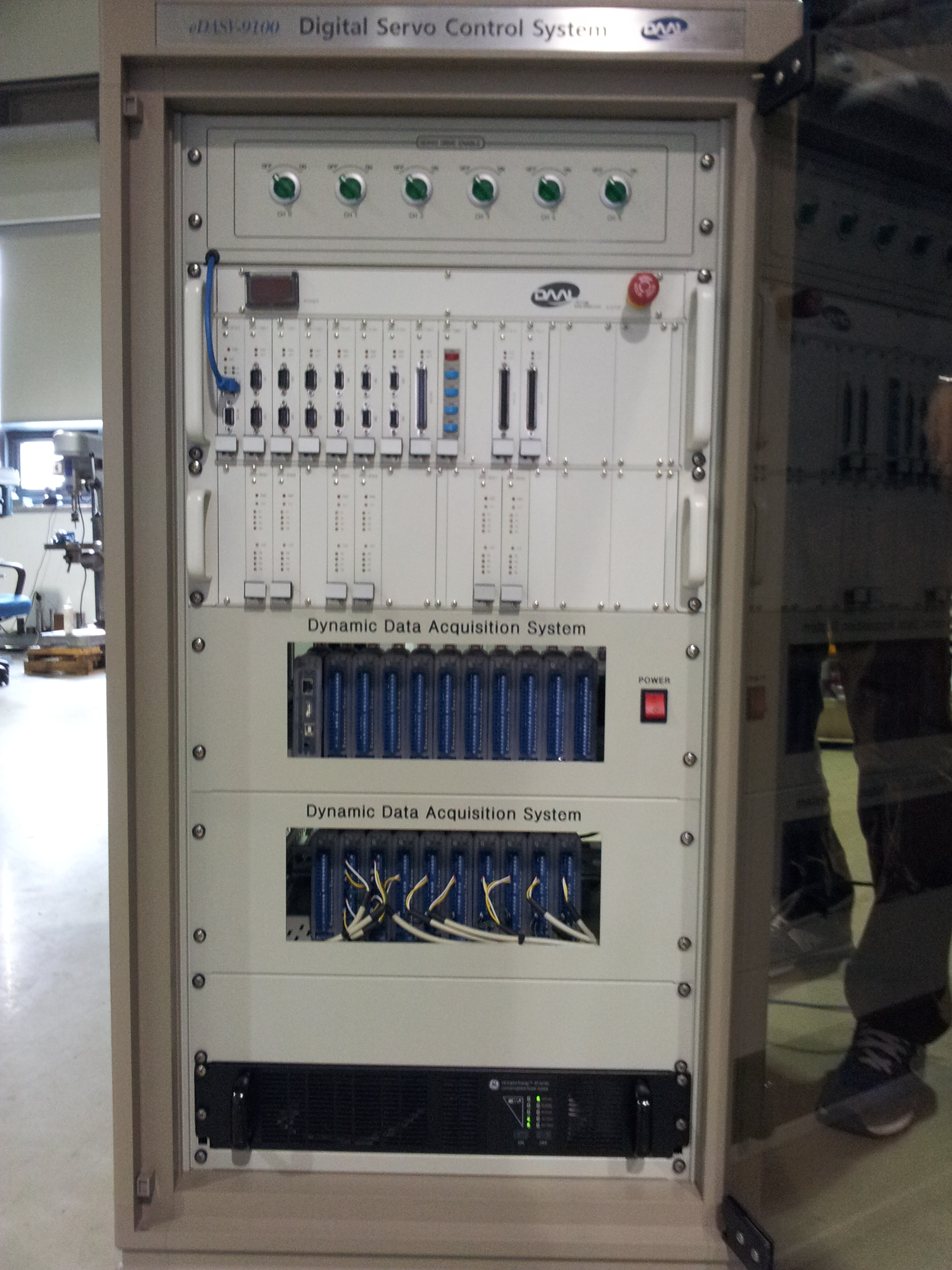

- 19인치 랙마운트 설계 제작가능
Q.bloxxA106

Most important features:

2 analog input channels

strain gauge and inductive bridges (full, half, quarter), LVDT, RVDT
DC and carrier frequency principle selectable
- DC bridge excitation,
- CF 600 Hz bridge excitation,
- CF 4800 Hz bridge excitation
2 analog outputs
voltage ±10 V, 10 kHz
Fast high accuracy digitalization
24 bit ADU, 20 kHz sample rate per channel
4 digital I/Os
input: state, tare, memory reset
output: state alarm, thresh hold
Signal conditioning
16 virtual channels, linearization, digital filter, average, scaling,
min/max storage, arithmetic, alarm
RS485 fieldbus interface
up to 48 Mbps: LocalBus
up to 115.2 kbps: Modbus-RTU, ASCII
Galvanic isolation
of analog I/O-signals, power supply and interface Isolation voltage 500 VDC
Electromagnetic Compatibility
according EN 61000-4 and EN 55011
Power supply 10…30 VDC
DIN rail mounting (EN 60715)

Q.bloxxA107

■ 4 universal analog input channels
voltage, current, resistance, potentiometer, Pt100, Pt1000, thermocouples, measuring bridges

■ Fast high accuracy digitalization
24 bit ADU, 10 kHz sample rate per channel

■ Signal conditioning
16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

■ RS485 fieldbus interface
up to 48 Mbps: LocalBus
up to 115.2 kbps: Modbus-RTU, ASCII

■ Connectable to any Test Controller
e.g. Q.gate or Q.pac

■ Galvanic isolation
of I/O-signals, power supply and interface

■ Electromagnetic Compatibility
according EN 61000-4 and EN 55011

■ Power supply 10…30 VDC

■ DIN rail mounting (EN 50022)
