Q.brixx 포터블 스트레인 데이터로거

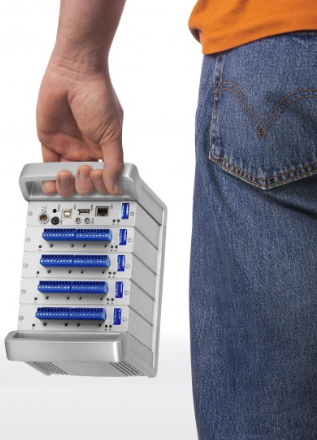

알루미늄 하우징의 포터블 스트레인 데이터로거
Q.brixx 모듈기반의 스트레인게이지 측정모듈
플러그인 모듈형태이므로 자유자재로 모듈확장가능(최대 16모듈)
24-bit ADC 고분해능, 10KHz  고속샘플링
스트레인게이지 뿐만아니라 진동,전압,전류,온도,로드셀 등
각종 센서신호에 따라 모듈 구성가능
제어출력모듈 구성가능

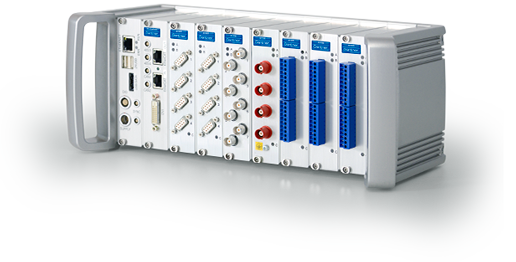

Q.brixx
휴대용, 강력한 데이터 수집 및 제어

Q.brixx 시스템은 Q.series의 기능을 포함하고 견고한 알루미늄 케이스에 내장 확장 및 휴대용 패키지 제공합니다. 여러 I / O 모듈 유형은 응용 프로그램 요구에 "믹스 앤 매치"측정 기능을 할 수 있도록 사용할 수 있습니다. 최대 16 모듈 테스트 제어기들, 측정 모듈의 선택, 유연한 신호 처리 방법 중 다수 포함 Q.brixx 시스템에 첨가 할 수있습니다.




Q.brixx A101
  • 2 universal analog input channels

    voltage, current, resistance, potentiometer, Pt100, Pt1000, thermocouples, measuring bridges, IEPE sensors

  • Fast high accuracy digitalization

    24 bit ADU, 100 kHz sample rate per channel

  • 1 digital in or output per channel

    input: state, tare, memory reset
    output: state alarm, thresh hold

  • Signal conditioning

    16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

  • Galvanic isolation

    of I/O-signals, power supply and interface
    Isolation voltage 500 VDC



Q.brixx A102
  • 1 analog input channel

    measuring bridge (full, half, quarter), IEPE-sensors, voltage, current

  • 1 analog output

    voltage ±10 V and current 0 up to 25 mA selectable, 100 kHz

  • Fast high accuracy digitalization

    19 Bit ADC - SAR (without delay time), 100 kHz sample rate

  • 4 digital inputs, 2 digital outputse

    input: state, tare, memory reset
    output: state alarm, thresh hold

  • Signal conditioning

    16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

  • Galvanic isolation

    of I/O-signals, power supply and interface
    Isolation voltage 500 VDC


                                         Q.brixx A103
  • 8 galvanic isolated input channels

    differential voltage, current via shunt connector
    Isolation voltage 100 VDC

  • High accuracy digitalization

    24 bit ADU, 100 Hz sample rate per channel with 8 active channels, 100 Hz sample rate per channel

  • 2 digital in and 2 outputs

    input: state, tare, memory reset
    output: state alarm, thresh hold

  • Signal conditioning

    linearization, digital filter, average, scaling, min/max storage, arithmetic, alarm

  • Galvanic isolation

    of I/O-signals, power supply and interface
    Isolation voltage 500 VDC

  • Accuracy class 0.01


                    Q.brixx A104
       8 galvanic isolated input channels

  • thermocouples and voltages in the range of ±80 mV Isolation voltage 100 VDC

  • Cold junction compensation

    good thermal coupling by means of cold junction compensation per connector

  • Dynamic linearization

    optimized positioning of the interpolation points within the selected range, type B, E, J, K, L, N, R, S, T, U

  • High accuracy digitalization

    24 bit ADU, 100 Hz sample rate per channel with 8 active channels, 100 Hz sample rate per channel

  • Signal conditioning

    digital filter, average, scaling, min/max storage, arithmetic, alarm

  • Galvanic isolation

    of I/O-signals, power supply and interface
    Isolation voltage 500 VDC

  • Accuracy class 0,01



                       Q.brixx A105

  • High accuracy

    Deviation max. 0.05°C, Temperature influence 0.02/10K

  • 4 input channels

    Pt100 or resistance in 3- or 4- wire technique

  • High accuracy digitalization

    24 bit ADC, 10 Hz sample rate per channel

  • Signal conditioning

    linearization, digital filter, average, scaling,
    min/max storage, arithmetic, alarm

  • Galvanic isolation

    channel to channel to power supply and to interface
    Isolation voltage 500 VDC



                        Q.brixx A106

  • 2 analog input channels

    Strain gage and inductive measuring bridges
    (full, half, quarter), LVDT, RVDT

  • DC and carrier frequency (CF) principle

    DC excitation, 600 Hz CF excitation, 4.8 kHz CF excitation for bridges

  • 1 analog output per channel

    Voltage ±10 V, 10 kHz

  • Fast high accuracy digitalization

    24 bit ADU, 10 kHz sample rate per channel

  • 1 digital in or output per channel

    input: state, tare, memory reset
    output: state alarm, thresh hold

  • Signal conditioning

    16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

  • Galvanic isolation

    of I/O-signals, power supply and interface Isolation voltage 500 VDC



                     Q.brixx A107

  • 4 universal analog input channels

    voltage, current, resistance, potentiometer, Pt100, Pt1000, thermocouples, measuring bridges

  • Fast high accuracy digitalization

    24 bit ADU, 10 kHz sample rate per channel

  • Signal conditioning

    16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

  • Galvanic isolation

    of I/O-signals, power supply and interface




                        Q.brixx A108


  • 24 bit ADU, 10 kHz sample rate per channel with
    8 active channels

  • 2 digital in and 2 outputs

    input: state, tare, memory reset
    output: state alarm, thresh hold

  • Signal conditioning

    linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

  • Galvanic isolation

    of I/O-signals, power supply and interface
    Isolation voltage 500 VDC

  • Accuracy class 0,01


                        Q.brixx A109

100 kHz with 1 channel, 10 kHz with 4 channels

  • 4 digital inputs and 4 digital outputs

    configurable as 2 counter, 2 frequency, or 2 PWM inputs, 2 frequency or PWM output, state in or output

  • Frequency in and outputs

    frequency measurement up to 1 MHz (Chronos method), frequency output up to 10 kHz

  • Counter

    For/backward counter, quadrature counter with reference zero recognition (reset/enable), up to 1 MHz

  • PWM in and output

    measurement of duty cycle and frequency, output with variable frequency and/or duty cycle

  • Outputs freely scalable
  • Galvanic isolation

    of I/O-signals, power supply and interface
    Isolation voltage 500 VDC



                         Q.brixx A111

  • Signal conditioning

    16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

  • Galvanic isolation

    chanel to channel to power supply and to interface isolation voltage 500 VDC



                         Q.brixx A116

  • 8 analog input channels for bridges

    strain gauge bridges (full, half, quarter), 8 real parallel inputs, neither scanned nor multiplexed

  • Flexible Input

    DC bridge excitation 2 V and 4 V
    input range 1 mV/V and 5 mV/V

  • Fast high accuracy digitalization

    24 bit ADU, 10 kHz sample rate per channel

  • Signal conditioning

    linearization, digital filter, average, scaling, min/max storage, arithmetic, alarm

  • Shunt calibration signal per channel
  • Compatible with all Q.series modules

    e.g. for displacement, temperature, counter, voltage, current, resistance, frequency, I/O

  • Galvanic isolation

    channel to power supply and to interface Isolation voltage 500 VDC


Q.brixx A123
  • 4 galvanically isolated input channels

    Voltages at high potential, ranges 100 mV, 1 V, 10 V

  • Insulation voltage 1200 VDC

    short-term 5000 VDC

  • Fast high accuracy digitalization

    24 bit ADU,
    50 kHz sample rate per channel with 4 channels,
    100 kHz sample rate per channel with 2 channels

  • Signal conditioning

    16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

                          Q.brixx A124

  • 4 galvanically isolated input channels

    for non-insulated thermocouples at high potential

  • Insulation voltage 1200 VDC

    short-term 5000 VDC

  • Cold junction compensation
  • Dynamic linearization

    Optimum positioning of interpolation points in selected range, types B, E, J, K, L, N, R, S, T, U

  • High accuracy digitalization

    24 bit ADU, 10 kHz sample rate per channel

  • Signal conditioning

    digital filter, average, scaling, min/max storage, arithmetic, alarm



                      Q.brixx A127

  • Fast high accuracy digitalization

    24 bit ADU,
    50 kHz sample rate per channel with 4 channels,
    100 kHz sample rate per channel with 2 channels

  • Signal conditioning

    linearization, digital filter, average, scaling, min/max storage, RMS, alarm, power and efficiency calculation

  • Galvanic isolation

    channel to channel to power supply and to interface isolation voltage 1200 VDC / 858 VACrms test voltage 5 kVDC over 1 minute



                                  Q.brixx A128

  • 4 galvanically isolated input channels

    Voltages, ranges 40 V, 120 V, 400 V, 1200 V

  • Insulation voltage 1200 VDC

    short-term 5000 VDC

  • Fast high accuracy digitalization

    24 bit ADU,
    50 kHz sample rate per channel with 4 channels,
    100 kHz sample rate per channel with 2 channels

  • Signal conditioning

    16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm



                         Q.brixx D101

  • 8 digital inputs and 8 digital outputs

    configurable as counter, frequency, PWM and time inputs, frequency or PWM output, state in or output

  • State in and outputs

    process- and host controlled

  • Frequency in and outputs

    frequency measurement up to 1 MHz (Chronos method), frequency output up to 10 kHz

  • Counter

    for/backward counter, quadrature counter with reference zero recognition (reset/enable), up to 1 MHz

  • PWM in and outputs

    measurement of duty cycle and frequency, output with variable frequency and/or duty cycle

  • Time measurement


                        Q.brixx D104

  •  16 digital inputs

    state, single or bit set, host controlled

  • Configurable threshold

    TTL or high level (EN61131-2, Type1)

  • Short reaction time

    10 µs per input

  • Galvanic isolation

    of I/O-signals (2 groups x 8 inputs), to power supply and to interface
    Isolation voltage 500 VDC



                          Q.brixx D105

  • 16 digital outputs

    state, single or bit set, host controlled

  • High possible load

    30 VDC / 500 mA short circuit proof

  • Short reaction time

    10 µs up to 1 ms per input

  • Galvanic isolation

    of I/O-signals (2 groups x 8 inputs),
    to power supply and to interface
    Isolation voltage 500 VDC



                        Q.brixx D107

  • 6 configurable digital inputs

    2 x 3 differential or single-ended, frequency, counter, PWM, state

  • Adjustable threshold in 256 steps

    Differential inputs in the range of -20 V up to + 20 V,
    Single-ended inputs in the range of 0 V up to +26 V

  • Frequency inputs

    Frequency measurement up to 1 MHz (Chronos method), direction recognition

  • Counter

    Up/down counter, quadrature counter with reference zero, up to 1 MHz

  • PWM inputs

    Measurement of duty cycle and frequency, output with variable frequency and/or duty cycle

  • Galvanic isolation

    Terminal 1, Terminal 2, power supply and interface
    Isolation voltage 500 VDC


                                         Q.brixx S104
  • 4 galvanic isolated voltages

    +5 VDC, +12 VDC, +15 VDC, +24 VDC

  • High possible load

    each voltage is loadable with 5 W

  • Combinations are possible

    voltages can be connected to get combinations like 17 V or 20 V

  • Galvanic isolation

    each voltage is galvanic isolated with 1.5 kV

                            Q.brixx gate

  • Consists of

    Side handles, Test Controller Q.brixx gate and power supply, ready for 14 measurement modules

  • Synchronisation and time stamp of measurement values

    IRIG 2 based, master slave principle on RS485 standard, DCF77, AFNOR or similar, GPS time and position data, SNTP via Ethernet

  • Ethernet interface for configuration and for data output

    FTP, TCP/IP, UDP

  • FTP Server and FTP Client

    Configurable in the function

  • High data rate via Ethernet

    128 real variables with 1 kHz (block transfer)
    16 real variables with10 kHz (block transfer)
    64 real variables with 300 Hz (online)

  • Data buffer memory 16 MByte

    Data buffer at block transfer, different logger functions, extendable over USB

  • PAC function with extensive function block library

    transfer functions, data logger, controller, sequences, mathematic, numeric, Boolean combinations, functions generator

                        Q.brixx station

  • Consists of

    side handles, Test Controller Q.brixx station and power supply unit, ready for 14 measurement modules in the samehousing and up to 32 plug-in modules in external housings

  • Ethernet interface for configuration and data output

    1 Gig-E, TCP/IP, UDP, up to 16 MB/s
    Modbus TCP/IP, ASCII, High Speed Port

  • Fieldbus-Interface

    EtherCAT slave, 1024 variables read and write at 10 kHz
    1 x CAN, 2 x USB 2.0, bis zu 4 MB/s

  • Synchronisation and time stamp of measurement values

    IRIG 2 based master slave principle on RS485 standard
    system synchronization ±1 µs applicable

  • Data buffer memory dyn. 500 MByte, stat. 4 GByte

    expandable over USB (up to 1.000.000 measurements/s)
    and SATA

  • 8 digital I/O

    direct connection of encoder for fast angle measurement frequency, PWM and counter measurements, state signals, watch dog

  • Display Port

    DVI interface to visualize standard and individual
    screens (HMI)

  • PAC functionality with extensive library (T versions)

    Sequences, data logger, PID-controller, transfer functions, mathematic, numeric, Boolean combinations, functions generator

                           Q.bridge

  • Native LabVIEW™ driver VIs
  • 100 % pin compatibility to DAQmx driver VIs
  • Platform independent architecture, no DLLs
  • Configuration and communication via an open network protocol
  • Works with any LabVIEW™ version
  • Multiple data rates simultaneously
  • for connecting up to 32 measuring modules

Q.bloxx Terminal CJC 101

  • Cold Junction Compensation for thermocouples (Q.bloxx A101)

Q.bloxx Terminal CJC 104

  • Cold Junction Compensation for thermocouples (Q.bloxx A104)

Q.bloxx Terminal CJC 107

  • Cold Junction Compensation for thermocouples (Q.bloxx A107)

Q.bloxx Terminal B 1/4

  • 10-pole connector for ¼ bridge toQ.bloxx A101, A102, A106; 120 Ω completion resistance or 350 Ω completion resistance

Q.bloxx Terminal 4C

  • Connection of current signals and current sensors (Q.bloxx A103 and A108)

CT A116

  • Connection terminal

    Patching the 8 x 6 connections of the A116 onto 8 pluggable screw terminals, inclusive the connection cable, assembly on DIN rail

ISK 103

  • Interface converter

    for USB to RS-485

ISK 200

  • Converter between measurement modules - PC

    RS-485 to RS-232 and RS-485 to USB

  • Power supply for measurement modules

    20 VDC for the voltage supply of up to 6 modules

  • Galvanic isolation up to 1.5 kV

    Protection of measurement modules from damaging voltages

  • Automatical baud rate detection

    Baud rate up to 115.2 kbps

  • LED status display

    Power, receive and transmit





  상호:  (주)인덱스티엠 I 주소: 16514, 경기도 수원시 영통구 법조로 25, 광교 SK VIEW Lake, A동 1602호 (내방객: 24층 회의실 사전예약)
  사업자등록번호: 214-03-16174  I  대표자: 조인복  I  대표: 031-895-4370
  Copyright @ 2000-2020 INDEXTM Corporation All Right Reserved
          본 홈페이지의 무단복제를 불허함
           INDEXTM Corporation  A-1602, SK VIEW Lake Tower, 25, Beopjo-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16514, Korea.
