Strain gauge coding system

fig.1

Gauge series

Applications

F/UF
WF
QF/ZF/EF
CEF
CF
AW
P
PF
FLM/WFLM
PM
PMF
PMFLS
KM
UBF/BF
GF/LF/PFLW
MF
YEF/YF/YHF
DSF
DD
FAC
SFA
TF
BTM
FGMH
FGAH
FGDH

General purpose
Waterproof construction
High temperature use
Wide range temperature use
Cryogenic temperature use
Weldable strain gauge
Concrete use, Polyester wire gauge
Concrete use, Polyester foil gauge
Concrete use, Metal-backing strain gauge
Concrete use, Embedment type strain gauge
Concrete use, Embedment type strain gauge
Asphalt use, Embedment type strain gauge
Concrete/Asphalt embedment use, strain transducer
Composite material use
Low elastic material use, Plastics/Gypsum/Wood
Magnetic field use
Post-yield strain (Large strain) measurement
High endurance use, Fatigue test
One-side gauge
Crack detection gauge
Stress measurement
Strain gauge type temperature measurement
Bolt axial strain measurement
Friction type Strain Checker
Friction type Axial strain transducer
Friction type Torque transducer

fig.2

Pattern configuration (*1)
L/LA/LK/LX/LG BX/BY	Single
C/CA/LC/CS/CB	2-axis Rosette (0°/90°)
R/LR/RA/RAS/RS	3-axis Rosette (0°/45°/90°)
XV/YV/BXV/BYV	5-element Single
CV	5-element Rosette (0°/90°)
CT	Torque
LT	45° Single

(*1) Not always coded

fig.3

Functions (*2)		Applicable gauge
A	Left 45°	QFLT-A
B	Right 45° for shearing strain measurement	QFLT-B
T	Thermocouple	Temperature-integrated

(*2) Not indicated for general model

fig.4

Compensation mateiral ppm/°C (*3)
3 Composite material Ceramic (Si3N4) CFRP 5 Composite material Ceramic (SiC) CFRP 8 Composite material Glass Titanium Titanium alloy (Ti-6Al-4V) 11 Mild steel Mild steel (0.1~0.2C) Hard steel (0.4~0.5C) Cast iron Hastelloy-276 Inconel 600 Inconel 750 Monel SUS 630 (17-4PH) SUS 631 (17-7PH) Concrete	2.6 - 3.3 3 - 5 4.6 3 - 5 7.9 8.9 8.8 11.8 11.2 10.5 11.2 13.3 12.1 13.5 10.8 10.6 7 - 13	17 Stainless steel/Copper alloy SUS 304 SUS 310 SUS 316 SUS 321 Copper Beryllium copper Brass Bronze Constantan 23 Aluminium Aluminium Aluminium 2024-T4 Lead and its alloy Gypsum Polyimide 28 Magnesium Magnesium alloy 50 Plastics Epoxy (Cast) 70 Plastics Acrylics ABS Polyacetal (POM) Polycarbonate (PC) Polystyrene (PS)	16.2 15.8 16.0 16.7 16.7 16.6 16.7 17.0 14.9 23.4 23.0 29.0 25.0 20 - 30 27.0 45 - 65 70 74 80 66 - 70 60 - 80

(*3) Indicated only for self-temperature-compensated gauges
For other materials, contact TML or your local representatives.

fig.5

Length of leadwire pre-attached
-002 -005 -1 -3 -5	2cm long 5cm long 1m long 3m long 5m long

Suffi x codes of pre-attached leadwires
Thin and lightweight leadwires
-LE	2-wire polyimide coated leadwire, Direct connection Applicable temperature ‒269°C~+300°C Applicable strain gauges series : F, UF, Q, Z, EF, CEF, CF, P, PF, FLM, UBF, BF, GF, LF,YEF, YF, YHF DSF, FAC
For use in air with room temperature
-L	2-wire paralleled vinyl sheathed leadwire, general purpose Applicable temperature : ‒20°C~+80°C Applicable strain gauges series : F, UF, EF, P, PF, FLM, UBF, BF, GF, LF, YEF, YF, YHF,DSF, FAC, BTM
-LT	3-wire paralleled vinyl sheathed leadwire, general purpose Applicable temperature : ‒20°C~+80°C Applicable strain gauges series : F, UF, EF, P, PF, FLM, UBF, BF, GF, LF, YEF, YF, YHF,DSF, FAC, BTM
-LTSA	φ3mm, 3-core shielded vinyl sheathed leadwire Applicable temperature : ‒20°C~+80°C Applicable strain gauges series : F, UF, EF, P, PF, FLM, UBF, BF, GF, BTM
-LQM	4-wire paralleled polypropylene Applicable temperature : ‒20°C~+100°C Applicable strain gauges series : F, UF, EF, P, PF, FLM, UBF, BF, GF, BTM
For use in water with normal temperature
-LRT	3-wire twisted cross-linked vinyl sheathed leadwire Applicable temperature : ‒20°C~+100°C Applicable strain gauges series : F, UF, EF, P, PF, FLM, UBF, BF, GF, BTM
For use in steam with hot water
-LJQTA	3-wire twisted cross-linked polyethylene sheathed leadwire Applicable temperature : ‒60°C~+125°C : F, UF, EF, UBF, BF, GF, BTM
For chemical-resistant
-LXT	3-wire paralleled special vinyl sheathed leadwire Applicable temperature : ‒20°C~+150°C Applicable strain gauges series : UF, Q,EF, CEF, CF, UBF, BF
For use in cryogenic and/or high temperature
-6FA-LT	3-wire twisted fl uorinated resin (FEP) sheathed leadwire Applicable temperature : ‒269°C~+200°C Applicable strain gauges series : Q,Z, EF, CEF, CF, UBF, BF
-4FA-LT	3-wire twisted fl uorinated resin (PTFE) sheathed leadwire Applicable temperature : ‒269°C~+260°C Also available upto +300°C for short term Applicable strain gauges series: Z, EF

For further information on leadwires such as electrical resistance, dimensions, etc.

Color code of gauge base for different test specimen

TML strain gauges are almost self-temperature compensated. Series F, UF, CF and WF are self-temperature compensated for the most commonly found material mild steel, stainless steel/copper alloy and aluminium, and are identified with gauge base colors of red, brown and green respectively.

Specimen material	Thermal expansion	Color of backing	Example of type name
Mild steel	11×10^-6/°C	Red	FLA-3-11
Stainless steel Copper alloy	17×10^-6/°C	Brown	FLA-3-17
Aluminum	23×10^-6/°C	Green	FLA-3-23

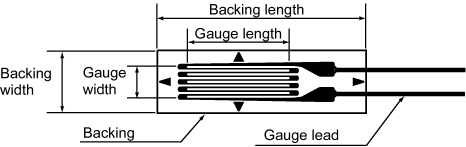

Name of each part

Dimensions are indicated in the specification of each gauge. Each gauge pattern indicated in respective column is not in an actual size.
