UF series 리드와이어 부착된 스트레인게이지
UF 시리즈 스트레인 게이지에 미리 부착 된 리드선. 스트레인 게이지 단말기 설치 및 리드선 납땜으로 리드 와이어 연결을위한 공사가 필요하지 않습니다. 때문에 많은 시간과 노동을 절약 할 수 있습니다. 스트레인 게이지의 온도가 80 ° C를 초과 작동 할 때, 불소 수지 피복 확장 와이어 주문해야합니다. (UF 시리즈는 폴리이 미드 게이지 리드를 사용합니다.)

 UF series Leadwire general use

This gauge has a pre-attached vinyl lead wire to UF series strain gage. Works for lead wire connection such as strain gauge terminal installation and lead wire soldering are not required. It saves much time and labor. When operating temperature of strain gauge exceeds 80°C, fluorinated resin sheathed extension wire should be ordered. (UF series utilizes polyimide gauge lead.)

Applicable specimen
Metal, Ceramics,
Composite
Backing
Polyimide-Amide
Operational temperature(°C)
-20~+150°C
Element
Cu-Ni alloy foil
Temperature compensation range(°C)
+10~+100°C
Strain limit
5%
(50000×10-6strain)
Bonding adhesive
CN, NP-50B, EB-2
Fatigue life at room temperature
1×106
(±1500×10-6strain)

Single-element (G.F. 2.1 approx.)

0.08mm2 integral vinyl leadwire Total leadwire resistance per meter : 0.44Ω

Type
Gauge
length
(mm)
Gauge
width
(mm)
Backing
length
(mm)
Backing
width
(mm)
Resistance
(Ω)
Lead wire
pre-attached
Type name
of lead wire
preattached
UFLA-1-11
UFLA-1-17
UFLA-1-23
1
1.3
5.0
2.5
120

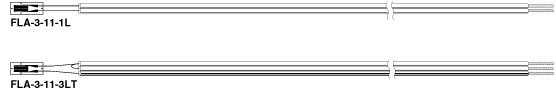

Paralleled 1m
Paralleled 3m
Paralleled 5m
3-wire 3m
3-wire 5m
-1L
-3L
-5L
-3LT
-5LT
UFLA-2-11
UFLA-2-17
UFLA-2-23
2
1.5
6.5
3.0
120
Paralleled 1m
Paralleled 3m
Paralleled 5m
3-wire 3m
3-wire 5m
-1L
-3L
-5L
-3LT
-5LT
UFLA-5-11
UFLA-5-17
UFLA-5-23
5
1.5
10.0
3.0
120
Paralleled 1m
Paralleled 3m
Paralleled 5m
3-wire 3m
3-wire 5m
-1L
-3L
-5L
-3LT
-5LT

Each package contains 10 gauges.



90° 2-element Cross (G.F. 2.1 approx.)

0.08mm2 integral vinyl leadwire Total leadwire resistance per meter : 0.44Ω

Type
Gauge
length
(mm)
Gauge
width
(mm)
Backing
(mm)
Resistance
(Ω)
Lead wire
pre-attached
Type name
of lead wire
preattached
UFCA-1-11
UFCA-1-17
UFCA-1-23
1
0.7
ø4.5
120
Paralleled 1m
Paralleled 3m
Paralleled 5m
3-wire 3m
3-wire 5m
-1L
-3L
-5L
-3LT
-5LT
UFCA-2-11
UFCA-2-17
UFCA-2-23
2
0.9
ø7.0
120
Paralleled 1m
Paralleled 3m
Paralleled 5m
3-wire 3m
3-wire 5m
-1L
-3L
-5L
-3LT
-5LT
UFCA-5-11
UFCA-5-17
UFCA-5-23
5
1.9
ø12.0
120
Paralleled 1m
Paralleled 3m
Paralleled 5m
3-wire 3m
3-wire 5m
-1L
-3L
-5L
-3LT
-5LT

Each package contains 10 gauges.



45°/90°3-element Rosette (G.F. 2.1 approx.)

0.08mm2 integral vinyl leadwire Total leadwire resistance per meter : 0.44

Type
Gauge
length
(mm)
Gauge
width
(mm)
Backing
(mm)
Resistance
(Ω)
Lead wire
pre-attached
Type name
of lead wire
preattached
UFRA-1-11
UFRA-1-17
UFRA-1-23
1
0.7
ø4.5
120
Paralleled 1m
Paralleled 3m
Paralleled 5m
3-wire 3m
3-wire 5m
-1L
-3L
-5L
-3LT
-5LT
UFRA-2-11
UFRA-2-17
UFRA-2-23
2
0.9
ø7.0
120
Paralleled 1m
Paralleled 3m
Paralleled 5m
3-wire 3m
3-wire 5m
-1L
-3L
-5L
-3LT
-5LT
UFRA-5-11
UFRA-5-17
UFRA-5-23
5
1.9
ø12.0
120
Paralleled 1m
Paralleled 3m
Paralleled 5m
3-wire 3m
3-wire 5m
-1L
-3L
-5L
-3LT
-5LT

Each package contains 10 gauges.
