LV-Link Software Interface for LabVIEW

LV-링크 ™는 내쇼날 인스트루먼트 '의 LabVIEW 및 데이터 변환 하드웨어 간의 인터페이스를 제공합니다. 모든 DT-오픈 레이어 호환 하드웨어를 지원합니다.

LV-Link Software Interface for LabVIEW

LV-Link™ 3 is a library of VIs (Virtual Instruments) that enable LabVIEW™ programmers to access the data acquisition features of DT-Open Layers-compliant USB and PCI devices. This library is consistent with the design and layout of the LabVIEW DAQmx VIs to speed development time and minimize learning curve issues.

LV-Link provides the ability to measure and control analog I/O, digital I/O, quadrature decoders, and counter/timer signals, and stream data at full-speed. To get up and running quickly, numerous example programs are provided with the software.

Key Features:

  • Create test and measurement applications for Data Translation DT-Open Layers compliant USB and PCI hardware using LabVIEW™
  • Integrate Data Translation and National Instruments hardware in the same application
  • Measure and control analog I/O, digital I/O, quadrature decoders, counter/timer signals
  • Stream data to disk at full-speed

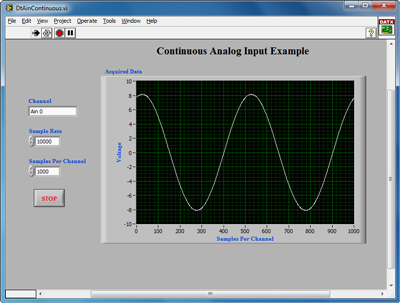

  • Numerous example programs to aid application development
  • For use with LabVIEW 8.5.1 or greater for 32-bit support, or LabVIEW 2009 or higher for 64-bit or 32-bit support
Note: LV-Link 3 is recommended for new applications. LV-Link 3 is not backwards compatible with LV-Link 2. If you have a LabVIEW application that was written using LV-Link 2.0 and you want to port that application to use LV-Link 3.0, please see the LV-Link help file for complete instructions on how to proceed.
