TOE 8950 ½Ã¸®Áî Single and dual-output

- Àý´ë ¿Ïº®ÀÇ ÀÀ¿ëÀ» À§ÇÑ ¼ÒÇü Àü¿ø°ø±ÞÀåÄ¡
- TOE 8950 ½Ã¸®Áî Àü¿ø°ø±ÞÀåÄ¡´Â ¾Æ·¡ÀÇ °ü·ÃµÈ ÀÀ¿ë ºÐ¾ß¿¡ ÀûÇÕÇÕ´Ï´Ù.
  ¿¬±¸ / °³¹ß
  ½ÇÇè½Ç / ½ÃÇè / ½ÇÇè
  »ý»ê / ½ÃÇè º£ÀÌ
  Ç°Áú º¸Áõ
  ¼­ºñ½º / ÈÆ·Ã

Overview











Performance in absolute perfection

Convenient performance for your applications

The power supplies from the TOE 8950 range are suitable for applications associated with:
Research / development
Laboratory / testing / experiments
Production / test bays
Quality assurance
Service / training

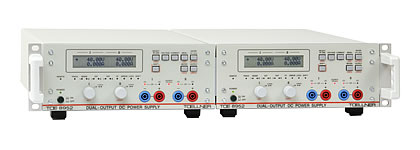

400 W in compact design
The single-output and dual-output power supplies from the TOE 8950 range have an extremely compact design. As a result of the high efficiency of all units, the complete output power of 400 W is available without problem over wide voltage and current ranges at the front via safety sockets and at the rear via a screw-type terminal block.

Autoranging
Power supplies with autoranging can output their rated power over a wide and stepless range of voltage and current combinations.
Autoranging power supplies from TOELLNER have a significantly larger operating range than standard power supplies with the same output power.



Adjustment using incremental spinwheels
The output values are adjusted with a selectable resolution using wear-free incremental spinwheels, guaranteeing reliable and precise setting of all output parameters and operating functions even after many years of use.

Display
The set and measured values for voltage, current and power as well as the menu control functions are output on a 2-row LCD with 20 characters/row.

Highest degree of safety
is guaranteed for your applications by comprehensive protective measures: adjustable overvoltage protection, limit function, fast power OFF switching, polarity reversal protection, resistance to reverse current, various internal electronic monitoring functions.

Innovative sensing circuit
An innovative sensing circuit not only keeps the power supply to your load extremely constant, it even protects sensitive loads if there is a break in the sensor line. The sensing inputs are available at the rear.

Adjustable output power
The possibility for directly setting the power is a further exceptional feature of this series. The output power of 400 W with single-output power supplies or 2 x 200 W with dual-output power supplies can then be reduced down to 5 % of the maximum output power.

Tracking mode
With dual-output power supplies, automatic tracking permits control of the output voltage of part 2 as a function (0 – 100 %) of part 1 with retention of all control properties.

Digital and analog control interfaces

Digital: RS 232 / GPIB / USB / LAN
RS 232 and GPIB/USB/LAN (optional) interfaces with the following scope of functions are available for communication between PC and power supply:
– Adjustment of output values: voltage, current and power
– OVP and limit adjustment, autocal function, display, store and recall settings
– Switching on/off of output v
– Reading of actual values as well as warning/fault statesde

The command syntax complies with the IEEE 488.2 standard. Standardized SCPI commands are processed.

Fast analog control
The power supplies can be controlled in analog mode; i.e. the output voltage and current can be adjusted independent of one another using externally applied control voltages.
Short adjustment times for the output voltage are implemented using balanced circuitry.
It is therefore possible to generate powerful and fast output signals without problem; up to approx. 700 Hz at 2 Vpp.

Interlock
By interrupting the interlock circuit, e.g. by an external emergency stop switch, the power supply output becomes deenergized directly.

Output ON/OFF
A convenient feature is the output switchoff function which at standby permits immediate reduction of the voltage and current values to 0 V and 0 A. When the output key is activated, the set or programmed values for voltage and current are present immediately. The switchover can be carried out manually, via a remote control command from the PC, via an external TTL signal1) or via an external switching contact1).

1)
Interlock or inhibit option required

Autocal-funktion
The power supplies are equipped with a self-calibration function protected by a ¡±security code¡±. This function can be manually executed from a menu or also remote-controlled.

Price and performance
The exceptional specifications, extraordinary features, and best possible processing quality provide the power supplies of the TOE 8950 series with an excellent price/performance ratio.is.

Options

– GPIB, USB, and LAN interfaces
– Arbitrary function
– Interlock
– Inhibit

Special features
– Automatic setting to the existing line voltage: 115 V or 230 V, 47 to 63 Hz
– Autoranging
– RS 232 and analog interfaces included as standard
– USB, LAN,  and GPIB interfaces optional
– Outputs at front and rear as standard
– On/off switching of the outputsge
– ¨ö 19¡° weight, 2 HU design parallel installation possible
– Sensing
– Free LabView¢â driver
– Can be used as constant voltage, constant current and constant power source (CV/CC/CP)

Models

  Output 1 Output 2
Modell Voltage Current Voltage Current Power
Single-output power supplies
TOE 8951-20
TOE 8951-40
TOE 8951-60
TOE 8951-80
TOE 8951-130

0 -   20 V
0 -   40 V
0 -   60 V
0 -   80 V
0 - 130 V

0 - 40 A
0 - 20 A
0 - 14 A
0 - 10 A
0 -   6 A













400 W
400 W
400 W
400 W
400 W
Dual-output power supplies
TOE 8952-20
TOE 8952-40
TOE 8952-60
TOE 8952-80
TOE 8952-130

0 -   20 V
0 -   40 V
0 -   60 V
0 -   80 V
0 - 130 V

0 - 20 A
0 - 10 A
0 -   7 A
0 -   5 A
0 -   3 A

0 -   20 V
0 -   40 V
0 -   60 V
0 -   80 V
0 - 130 V

0 - 20 A
0 - 10 A
0 -   7 A
0 -   5 A
0 -   3 A

2 x 200 W
2 x 200 W
2 x 200 W
2 x 200 W
2 x 200 W
Outputs
-
Floating for all models
- Electrically isolated in the dual-output power supplies
- series and parallel connections possible
- Safety sockets at front
- Available at rear on screw terminal block

Arbitrary function

The power supplies of these series can be optionally equipped with an arbitrary function (curve memory integrated in the unit). The units execute an entered curve autonomously, even without a PC connection. Dual-output power supplies of the TOE 8952 series have a separate curve memory per output. Two signals can then be output synchronous to one another. A burst function defines the number of desired curve sweeps.
In addition, the curve memory can be divided into up to 10 blocks. Each individual block can be used repeatedly. The advantage is to be found in the extremely efficient use of memory space.
The new and powerful software from TOELLNER permits fast and convenient input of curves using a graphic curve editor. Oscilloscope signals recorded in a vehicle can be read in directly and subsequently simulated. Voltage dips, starting processes in the vehicle, and noise voltages on the vehicle electrics can thus be simulated rapidly and without problem. Standardized test pulses in accordance with DIN 16750 or ISO 7637, such as load dump test pulses (also clipped), jump starts and reset response, or specific and standardized test curves from many different vehicle manufacturers, can be simulated and are included in the scope of delivery. New and future versions from manufacturers, as well as new test versions, are implemented can be entered in next to no time.

TOE 9151 or TOE 9152 option required (arbitrary function in the unit) if curves are to be output via internal memories.

Application example
Example of a sinusoidal signal with start block for initialization process, repetition block with a sinusoidal signal and 5 sweeps, and an end block for switching off a consumer.




Display of sequence with output of current block, currently executed step, and number of busts of the current block.




Technical specifications
Number of steps 1000
Step data Voltage, Current, Step time
Step time 10 ms to 100 s, resolution 5 ms
Curve triggering
Internal
External

Manual with key or over bus with remote control command
Via TTL signal or switch contact
Number of blocks 10
Max. block sweeps 1 bis 65535 bzw.¡Ä

Arbitrary function
- 1000 interpolation points
- 10 blocks with repeat function
- 10 ms < t < 100 s per interpolation poin
- Burst function (also for each individual block)

Software for arbitrary function
- Graphic and tabular input of curve
- Data input from oscilloscopes
- Library with standard curves for automotive industry

Curve input options
- Manual
- Via RS 232, GPIB or USB interface
- Convenient TOELLNER software with graphic curve input option

Technical data



Single-output power supplies

Output TOE 8951-20  TOE 8951-40 TOE 8951-60 TOE 8951-80 TOE 8951-130
Voltage 0 - 20 V 0 - 40 V 0 - 60 V 0 - 80 V 0 - 130 V
Current 0 - 40 A 0 - 20 A 0 - 14 A 0 - 10 A 0 - 6 A
Power adjustable in range 20 - 400 W  20 - 400 W 20 - 400 W 20 - 400 W 20 - 400 W
Setting resolution
Voltage
Current
Power

5 mV
10 mA
0.1 W

10 mV
5 mA
0.1 W

10 mV
2 mA
0.1 W

20 mV
2 mA
0.1 W

20 mV
1 mA
0.1 W
Setting accuracy
Voltage
Current
Power

0.1 % + 10 mV
0.2 % + 40 mA
0.4 % + 1 W

0.1 % + 20 mV
0.2 % + 20 mA
0.4 % + 1 W

0.1 % + 30 mV
0.2 % + 15 mA
0.4 % + 1 W

0.1 % + 40 mV
0.2 % + 10 mA
0.4 % + 1 W

0.1% + 60 mV
0.2 % + 5 mA
0.4 % + 1 W
Deviation in regulation with 100 %
change in load

Voltage
Current


10-4 + 5 mV
5 x 10-4+20 mA


10-4 + 5 mV
5 x 10-4+10 mA


10-4 + 5 mV
5 x 10-4 + 7 mA


10-4 + 5 mV
5 x 10-4 + 5 mA


10-4 + 5 mV
5 x 10-4+ 2 mA
With change in line voltage ¡¾ 10 % 5 x 10-5  5 x 10-5 5 x 10-5 5 x 10-5 5 x 10-5
Regulation time with change in
load from 20 % to 100 % Irated
Tolerance: 0.2 % Urated

100 ¥ìs

100 ¥ìs

100 ¥ìs

100 ¥ìs

100 ¥ìs
Setting time of output voltage
with change in setpoint
0 V to Vrated no-load/full load
Vrated to 1 V no-load/full load


6 ms/10 ms
30 ms/8 ms


8 ms/10 ms
50 ms/10 ms


10 ms/15 ms
100 ms/25 ms


15 ms/20 ms
200 ms/50 ms


50 ms/60 ms
1.5 s/400 ms
Residual ripple (rms)
10 Hz to 10 MHz

Voltage
Current


  3 mV
12 mA


  3 mV
10 mA


6 mV
7 mA


10 mV
  5 mA


12 mV
  2 mA
Measuring accuracy
Voltage
Current
Power

0.1 % + 20 mV
0.2 % + 60 mA
0.4 % + 1 W

0.1 % + 30 mV
0.2 % + 30 mA
0.4 % + 1 W

0.1 % + 45 mV
0.2 % + 20 mA
0.4 % + 1 W

0.1 % + 60 mV
0.2 % + 15 mA
0.4 % + 1 W

0.1 % + 80 mV
0.2 % + 10 mA
0.4 % + 1 W
Temperature coefficient
Voltage
Current

10-4/K
10-4/K

10-4/K
10-4/K

10-4/K
10-4/K

10-4/K
10-4/K

10-4/K
10-4/K
Analog interface
Control voltage
(reference potential is the negative pole of the output)
0 - 5 V for
0 - 5 V for




0 - 20 V
0 - 40 A




0 - 40 V
0 - 20 A




0 - 60 V
0 - 14 A




0 - 80 V
0 - 10 A




0 - 130 V
0 -     6 A
Protection functions
Adjustment range for OVP
Adjustment range for limit

3 - 22 V
0 - 20 V

3 - 44 V
0 - 40 V

3 - 66 V
0 - 60 V

3 - 88 V
0 - 80 V

3 - 143 V
0 - 130 V
Resistant to feedback
Voltage
Current

100 V
  40 A

100 V
  20 A

100 V
  14 A

100 V
  10 A

160 V
    6 A



Dual-output power supplies

Output TOE 8952-20 TOE 8952-40 TOE 8952-60 TOE 8952-80 TOE 8952-130
Voltage 2 x 0 - 20 V 2 x 0 - 40 V 2 x 0 - 60 V 2 x 0 - 80 V 2 x 0 - 130 V
Current 2 x 0 - 20 A 2 x 0 - 10 A 2 x 0 -  7 A 2 x 0 - 5 A 2 x 0 -  3 A
Power adjustable in range 2 x 10 - 200 W 2 x 10 - 200 W 2 x 10 - 200 W 2 x 10 - 200 W 2 x 10 - 200 W
Setting resolution
Voltage
Current
Power

5 mV
5 mA
0.1 W

10 mV
2 mA
0.1 W

10 mV
1 mA
0.1 W

20 mV
1 mA
0.1 W

20 mV
1 mA
0.1 W
Setting accuracy
Voltage
Current
Power

0.1 % + 10 mV
0.2 % + 20 mA
0.4 % + 1 W

0.1 % + 20 mV
0.2 % + 10 mA
0.4 % + 1 W

0.1 % + 30 mV
0.2 % + 7 mA
0.4 % + 1 W

0.1% + 40 mV
0.2 % + 5 mA
0.4 % + 1 W

0.1% + 60 mV
0.2 % + 3 mA
0.4 % + 1 W
Deviation in regulation with 100 %
change in load
Voltage
Current


10-4 + 5 mV
5 x 10-4+10 mA


10-4 + 5 mV
5 x 10-4 + 5 mA


10-4 + 5 mV
5 x 10-4 + 3 mA


10-4 + 5 mV
5 x 10-4+ 2 mA


10-4 + 5 mV
5 x 10-4+ 1.5 mA
With change in line voltage ¡¾ 10 % 5 x 10-5 5 x 10-5 5 x 10-5 5 x 10-5 5 x 10-5
Regulation time with change in load
from 20 % to 100 % Irated
Tolerance: 0.2 % Urated

100 ¥ìs

100 ¥ìs

100 ¥ìs

100 ¥ìs

100 ¥ìs
Setting time of output voltage
with change in setpoint
0 V to Vrated no-load/full load
Vrated to 1 V no-load/full load



6 ms/10 ms
30 ms/8ms



8 ms/10 ms
50 ms/10 ms



10 ms/15 ms
100 ms/25 ms



15 ms/20 ms
200 ms/50 ms



50 ms/60 ms
1.5 s/400 ms
Residual ripple (rms)
10 Hz to 10 MHz

Voltage
Current


2 mV
10 mA


3 mV
5 mA


6 mV
3 mA


10 mV
2 mA


10 mV
1.5 mA
Measuring accuracy
Voltage
Current
Power

0.1 % + 20 mV
0.2 % + 30 mA
0.4 % + 1 W

0.1 % + 30 mV
0.2 % + 10 mA
0.4 % + 1 W

0.1 % + 45 mV
0.2 % + 7 mA
0.4 % + 1 W

0.1 % + 60 mV
0.2 % + 5 mA
0.4 % + 1 W

0.1 % + 80 mV
0.2 % + 5 mA
0.4 % + 1 W
Temperature coefficient
Voltage
Current

10-4/K
10-4/K

10-4/K
10-4/K

10-4/K
10-4/K

10-4/K
10-4/K

10-4/K
10-4/K
Analog interface
Control voltage
(reference potential is the negative pole of the output)
0 - 5 V for
0 - 5 V for




0 - 20 V
0 - 20 A




0 - 40 V
0 - 10 A




0 - 60 V
0 - 7 A




0 - 80 V
0 - 5 A




0 - 130 V
0 - 3 A
Protection functions
Adjustment range for OVP
Adjustment range for limit

3 - 22 V
0 - 20 V

3 - 44 V
0 - 40 V

3 - 66 V
0 - 60 V

3 - 88 V
0 - 80 V

3 - 143 V
0 - 130 V
Resistant to feedback
Voltage
Current

100 V
20 A

100 V
10 A

100 V
7 A

100 V
5 A

160 V
3 A


General data

Output
Insulation
Floating and electrically isolated
¡¾ 250 V against ground
RS 232 Interface
Interface
Transfer rate
Setting rate
Measuring rate
Software

9-pin D-SUB connector, electrically isolated from main output
110 to 57.600 Baud
Approx. 20 settings/s
Approx. 15 measurements/s
Command sequence in accordance with IEEE 488.2; SCPI
Analog interface
Control voltage
Input impedance

0 - 5 V each for 0 - Vmax bzw. 0 - Imax
Approx. 10 kOhm
Line voltage 115 V or 230 V ¡¾ 10 %, 47 Hz to 63 Hz; the unit sets itself automatically to the existing line voltage
Power consumption Approx. 680 VA
Protective measures Protection class 1 in accordance with DIN EN 61010-1
EMC EN 61326
Operating temperature 0 ¡ÆC to 40 ¡ÆC
Storage temperature -20 ¡ÆC bis 70 ¡ÆC
Reference temperature 23 ¡ÆC  ¡¾ 1 ¡ÆC
Dimensions
with feet
224 x   88 x 405 mm (W x H x D)
224 x 103 x 405 mm (W x H x D)
19" system ¨ö 19", 2 HU
Weight Approx. 5 kg
Housing Aluminium/steel


Rear of unit
Dual-output power supply with USB interface
TOE 8952 series

Order informations + Options


Single-output power supplies
TOE 8951-20 Power supply  20 V / 40 A
TOE 8951-40 Power supply  40 V / 20 A
TOE 8951-60 Power supply  60 V / 14 A
TOE 8951-80 Power supply   80 V / 10 A
TOE 8951-130 Power supply  130 V / 6 A
Dual-output power supplies
TOE 8952-20  Power supply  2 x 20 V / 20 A
TOE 8952-40 Power supply 2 x 40 V / 10 A
TOE 8952-60 Power supply 2 x 60 V /   7 A
TOE 8952-80 Power supply  2 x 80 V /   5 A
TOE 8952-130 Power supply 2 x 130 V / 3 A

Options

GPIB interface

TOE 8951/015 For TOE 8951-xx
TOE 8952/015 For TOE 8952-xx
USB interface
TOE 8951/025 For TOE 8951-xx
TOE 8952/025 For TOE 8952-xx
LAN interface + USB interface (not in combination with RS 232 interface)
TOE 8951/035 For TOE 8951-xx
TOE 8952/035 For TOE 8952-xx
Arbitrary function in the unit
TOE 9151 For TOE 8951-xx
TOE 9152 For TOE 8952-xx
PC software for curve generation
TOE 9751 For TOE 8951-xx
TOE 9752 For TOE 8952-xx
Interlock/inhibit options
The interlock and inhibit control options permit external enabling or OFF/ON switching of the main output by means of a switch or a TTL signal.

Interlock option TOE 8950/101
Control via
contact
Control via
TTL-Signal
Power supply
output
Close Low ON
Open High OFF
Interlock option TOE 8950/101
Control via
contact
Control via
TTL-Signal
Power supply
output
Close Low OFF
Open High ON
Cable and adapters
TOE 9101 USB/GPIB adpter
TOE 9009 IEEE-488 cable, 2 m
TOE 9521 19" adapter, 2 HU asymetric for single
TOE 9522 19" adapter, 2 HU parallel installation set for 2 units

Supplied accessories
- 1 Power cord
- 1 instruction manual
- 1 RS 232 intercface cable

Free driver for für LabViewTM


19" adapter, TOE 9522
2 HU, parallel installation set for 2 units of the TOE 8950 series






Software ´Ù¿î·Îµå





  »óÈ£:  (ÁÖ)À妽ºÆ¼¿¥ I ÁÖ¼Ò: 16514, °æ±âµµ ¼ö¿ø½Ã ¿µÅ뱸 ¹ýÁ¶·Î 25, ±¤±³ SK VIEW Lake, Aµ¿ 1602È£ (³»¹æ°´: 24Ãþ ȸÀÇ½Ç »çÀü¿¹¾à)
  »ç¾÷ÀÚµî·Ï¹øÈ£: 214-03-16174  I  ´ëÇ¥ÀÚ: Á¶Àκ¹  I  ´ëÇ¥: 031-895-4370
  Copyright @ 2000-2020 INDEXTM Corporation All Right Reserved
          º» ȨÆäÀÌÁöÀÇ ¹«´Üº¹Á¦¸¦ ºÒÇãÇÔ
           INDEXTM Corporation  A-1602, SK VIEW Lake Tower, 25, Beopjo-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16514, Korea.
