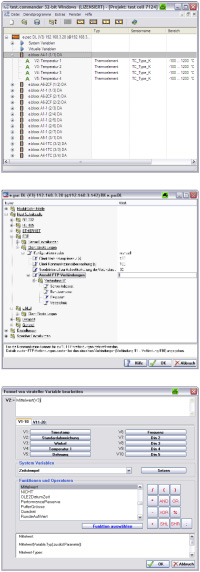

test.commander

Configuration of Instrumentation Systems

test.commander is a program for Windows® 2000, NT, XP and Vista, which allows complex systems, consisting of one or more test controllers and multiple Q.bloxx or e.bloxx modules, to be configured and adapted to the specific requirements.

The standard Ethernet interface is used for configuration. The test.commander serves as the FTP client for reading and writing the configuration files and therefore has access to all measuring system parameters. The ICP 100 configuration software is included with the test.commander. The integrated test.viewer allows the measured data to be visualized and analyzed even during configuration.

The most important facts:

- Fast and simple configuration
- Online and offline modes
- Visualization of readings
- Comprehensive support features
- Wizard - from switch-on to first reading
- Access rights for various hierarchic levels
- Creation of own module templates
- Uniform software for all systems

Current Version: 1.5.0 (Build 01)

Download

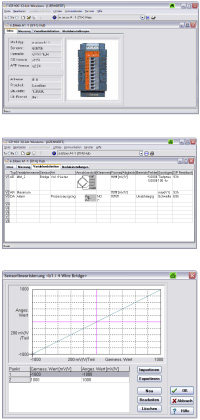

ICP 100

Configuration of individual instrument modules

The ICP 100 software can be used to configure all modules in the Q.bloxx, e.bloxx and ISM series over the RS485 serial interface and adapt them to the specific requirements.

After a bus scan, all connected modules are shown clearly regardless of the baud rate. Four index cards provide a good overview and quick, intuitive use of the software. Complete configuration and storage in a file is possible even without modules connected in the offline mode. ICP 100 is an integral part of the test.commander however can also be run as a stand-alone program.

The most important facts:

- Fast and simple configuration
- For all Q.bloxx, e.bloxx and ISM series modules
- Database with standard and custom sensors
- Import of custom sensor curves
- Free upgrade service

Current Version: 3.2.10 (Build 01)

Download

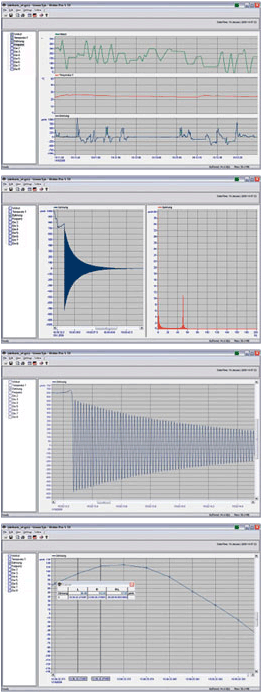

test.viewer

Visualization of measurement data

With this software tool, online visualization and display of logged measurement data in multiple graphic windows or in a numeric, tabular format is possible. With the zoomfunctionality and the ability to do some analysis with the signals, test.viewer provides a fast, first look at the measurement data.

test.viewer is part of test.commander but although as own program executable.

The most important facts:

- Online and Oflline Data visualize
- Y/t and Y/X-displays
- Online FFT analysis
- Grouping of signals in the "Explorer-style" menu
- Conversion of logged data into other formats:
   GreenEye (*.ged)
   DASYLab (*.ddf)
   Famos (*.dat)
   MATLAB (*.mat)
   Bernard (*.bbl)
   WAVE (*.wav) und
   Excel (*.csv).

Current version: 1.63

Download

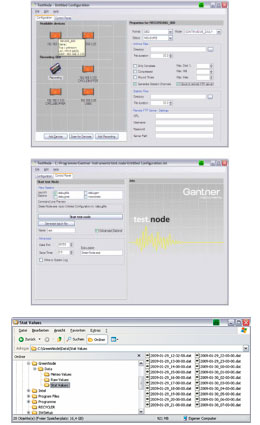

test.node

Archiving of data onto local PCs, networks,
data base servers (Server Software)

With the test.node server software it is possible to read data from one or more test controllers, to format and/or convert the data and then store the resulting data files in the desired location (PC, network, server, etc.).

The most important facts:

- Converting data into different formats(see test.viewer)
- Storing data onto a local PC, into a network
- or into an SQL data base
- Filenames (date, time, directory structure) freely definable
- Copy & Paste or Cut & Paste of Test Controller data files
- Selectable transmission rates and file size
- Visualization of data (online or offline) with test.viewer

Download

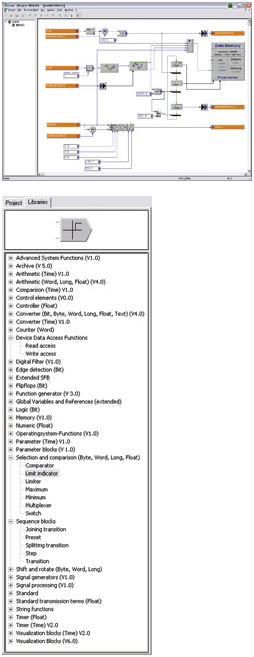

test.con

Graphical programming of the PAC functionality

Applications and PAC functionality are easily graphically programmed on the PC using test.con. Arrange desired functions on your screen with a simple mouse click. Connect the function as desired with a mouse click. Not one line of code is needed to program using test.con.

Drag & Drop

Programming is easy, just drag and drop the desired variable and drag and drop the desired function from our extensive library to the work page on the PC. Connect the input and output of the various function blocks with each other and in a short time the application is built.

Macros

Macros improve the clarity, streamline the program, and save time developing recurring functions.

Function Library

A very extensive function library is available to the user for developing the application.

Documentation and Help

Behind each function is a help page describing the use of that particular function. The extensive help function supports the user at every stage of programming.

Simulation and Online Test

Simulate the application function-by-function in the PC before downloading the application. Also, online testing is possible in the measuring system. In online testing the actual values are used.
Die Demoversion erlaubt eine Funktion von 2 Stunden pro Projekt.

Current Version: 4.4.0 (Build 01)

Download

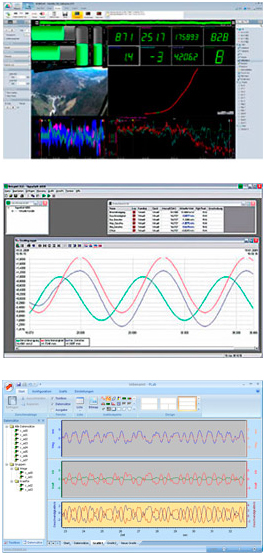

Software solutions

Our ambition is to offer users a complete solution, while also allowing use of software solutions already present. For this reason we offer software solutions with different focal points and performance levels matched precisely to our Q.series und e.series.

DEWESoft

One of the leading data acquisition packages with an enormous scope of features.

Website: DEWESoft

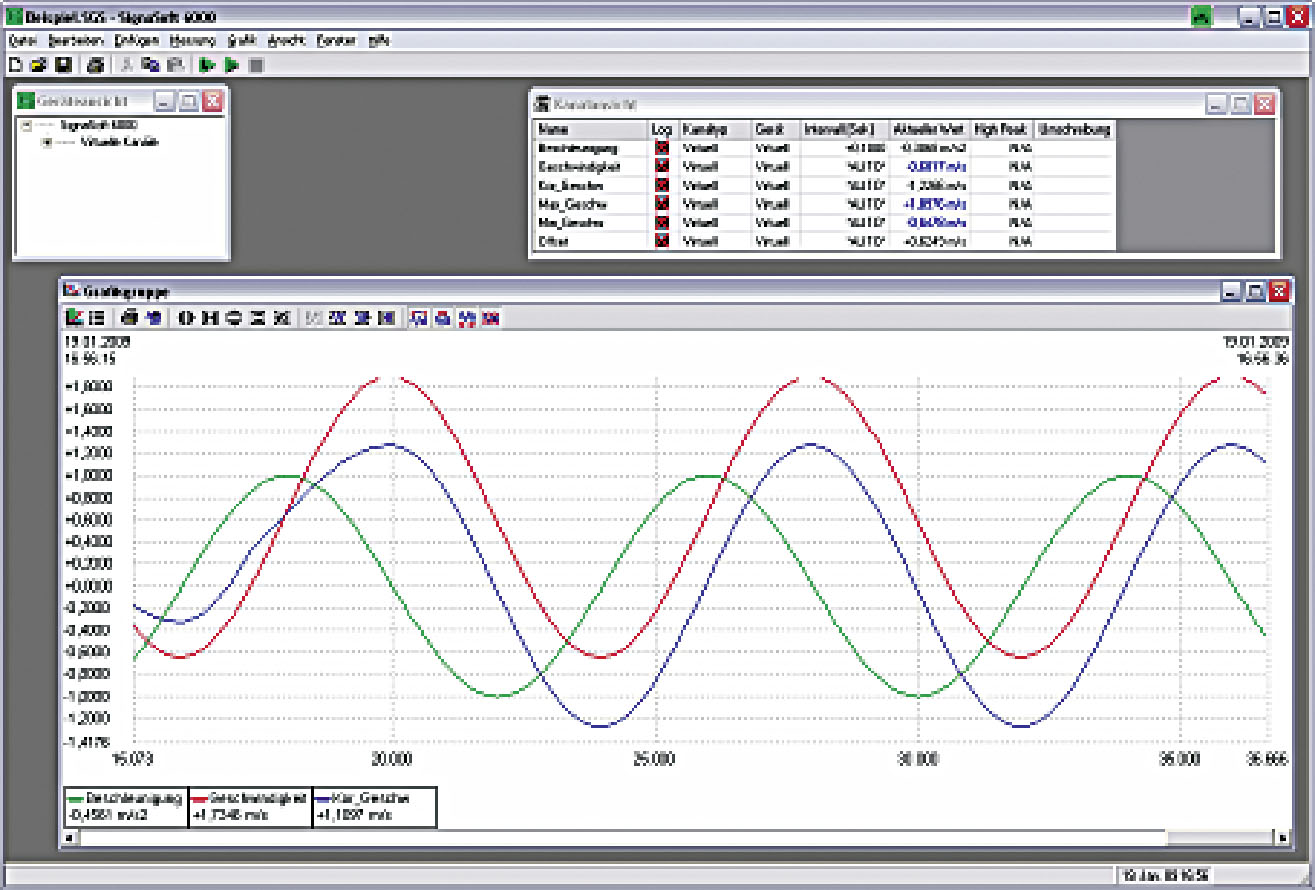

SignaSoft

A very practical and easy-to-lean solution for visualization and storage of readings.

Download

Current Version: 2.2.28 (Build 73)

Download

MLab and PLab

These two software products are intended particularly for automation of test sequences including predefined visualization and data conditioning.

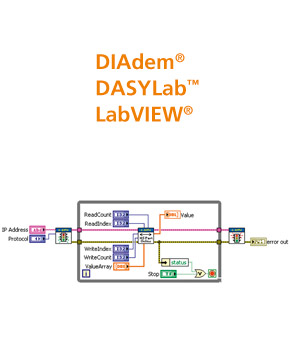

Drivers and examples of standard software

We offer you:

- Drivers for incorporation of our products into DIAdem projects
- Drivers for incorporation of our products into DASYLab projects
- Free VI files as examples for incorporating our products into LabVIEW
- Free example projects for incorporating into MSCPP60, MSVBasic60 and DELPHI2006

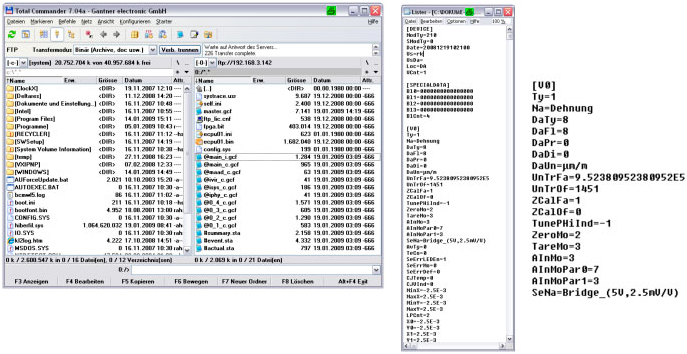

Open interface

Access to all configuration files and readings from any FTP client. Reading, modifying and writing of configurations.
This ensures simple incorporation of the instrument system into an automation system - regardless of the operating system.
Multiple password hierarchies for access protection: Reading data, configuring systems or system updates.
