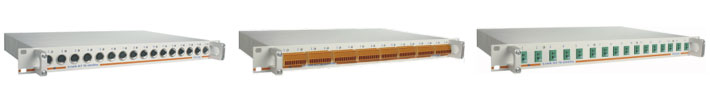

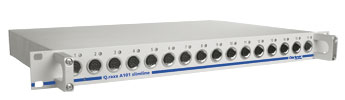

e.rack slimline

e.rack A1-16

16 multifunctional analog inputs for voltage, current, resistance, potentiometer, Pt100, thermocouple, fullbridges 19 bit ADC, sample rate1 kHz per channel; signal conditioning

Download

e.rack A3-16

16 analog inputs for voltage and current 19 bit ADC, sample rate 100 Hz per channel; signal conditioning

Download

e.rack A4-16

16 analog inputs for thermocouple 19 bit ADC, sample rate 100 Hz per channel; signal conditioning

Download

e.rack A5-16

16 analog inputs for Pt100 and resistance 19 bit ADC, sample rate 10 Hz per channel; signal conditioning

Download

e.rack D1-64

64 digital inputs and outputs, configurable as status or 32 counter, frequency or PWM inputs or outputs

Download

e.rack - 19" Rack Mount (3U) System

A complete 19" rack mount or tabletop housing system with 3U plug-in modules can be configured, and if desired an e.gate or e.pac test controller can be incorporated. As an option, a graphical touch screen can be added.

Download
