Q.brixx 포터블 시스템

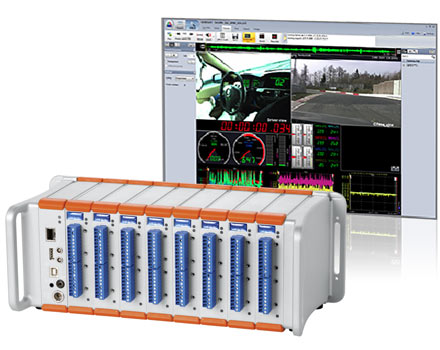

최대 16 개의 슬라이드 모듈을 사용자가 제공 한 하우징에서 24 평행 만능 채널 열전대 플러스 플러스 8 캐리어 주파수 채널 플러스 8 개 카운터, 16 입력. 모든 Q.series 기능의 모듈화 설계 및 무한한 조합 가능성이 매우 높은 시스템 성능을 보장합니다. 또한, '은 핫 스왑'기능도 Q.brixx 시스템을 사용할 수 있습니다.
Q.brixx 시스템은 항상 테스트 컨트롤러 Q.gate 이더넷의 TCP / IP 인터페이스를 제공합니다 갖추고 있습니다. 테스트 컨트롤러 PAC 기능, 계산을, PID를, 시퀀스 기능, 부울 조합 등 고급으로 정의할 수 있습니다 독립 PC에서 실행됩니다.
Q.brixx Module A101
 Download
■ 2 universal analog input channels
voltage, current, resistance, potentiometer, Pt100, Pt1000, thermocouples, measuring bridges, IEPE-sensors

■ Fast high accuracy digitalization
24 bit ADU, 100 kHz sample rate per channel

■ 1 digital in or output per channel
input: state, tare, memory reset
output: state alarm, thresh hold

■ Signal conditioning
16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

■ TEDS
class 1 and class 2, according IEEE 1541.4

■ Galvanic isolation
of I/O-signals, power supply and interface
Isolation voltage 500 VDC
Q.brixx Module A102
 Download
■ 1 analog input channel
measuring bridge (full, half, quarter), IEPE-sensors, voltage, current

■ 1 analog output
voltage ±10 V and current 0 up to 25 mA selectable, 100 kHz

■ Fast high accuracy digitalization
19 Bit ADC - SAR (without delay time), 100 kHz sample rate

■ 4 digital inputs, 2 digital outputse
input: state, tare, memory reset
output: state alarm, thresh hold

■ Signal conditioning
16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

■ TEDS
class 1 and class 2, according IEEE 1541.4

■ Additional RS 485 fieldbus interface
to control an 8-channel multiplexer for multi channel systems, 10 Hz per channel

■ Galvanic isolation
of I/O-signals, power supply and interface
Isolation voltage 500 VDC
Q.brixx Module A104
 Download

■8 galvanic isolated input channels

thermocouples and voltages in the range of ±80 mV Isolation voltage 100 VDC

■Cold junction compensation

good thermal coupling by means of cold junction compensation per connector

■Dynamic linearization

optimized positioning of the interpolation points within the selected range, type B, E, J, K, L, N, R, S, T, U

■High accuracy digitalization

24 bit ADU, 100 Hz sample rate per channel with 8 active channels, sum sample rate 800 Hz

■Signal conditioning

digital filter, average, scaling, min/max storage, arithmetic, alarm

■Galvanic isolation

of I/O-signals, power supply and interface

Isolation voltage 500 VDC

Q.brixx Module A106
 Download
■2 analog input channels

Strain gage and inductive measuring bridges (full, half, quarter), LVDT, RVDT

■DC and carrier frequency (CF) principle

DC excitation, 600 Hz CF excitation, 4.8 kHz CF excitation for bridges

■1 analog output per channel

Voltage ±10 V, 10 kHz

■Fast high accuracy digitalization

24 bit ADU, 10 kHz sample rate per channel

■1 digital in or output per channel

input: state, tare, memory reset

output: state alarm, thresh hold

■Signal conditioning

16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

■Galvanic isolation

of I/O-signals, power supply and interface Isolation voltage 500 VDC

Q.brixx Module A107
 Download
■ 4 universal analog input channels
voltage, current, resistance, potentiometer, Pt100, Pt1000, thermocouples, measuring bridges

■ Fast high accuracy digitalization
24 bit ADU, 10 kHz sample rate per channel

■ Signal conditioning
16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

■ Galvanic isolation
of I/O-signals, power supply and interface
Q.brixx Module A108
 Download
■ 8 galvanic isolated input channels
differential voltage, current via shunt connector Isolation voltage 100 VDC

■ High accuracy digitalization
24 bit ADU, 10 kHz sample rate per channel with 8 active channels, sum sample rate 80 kHz

■ 2 digital in and 2 outputs
input: state, tare, memory reset
output: state alarm, thresh hold

■ Signal conditioning
linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm
■ Galvanic isolation
of I/O-signals, power supply and interface
Isolation voltage 500 VDC
Q.brixx Module A109
 Download
■ 4 galvanic isolated analog output channels
voltage ±10 V, current 4…20 mA selectable Isolation voltage 500 VDC

■ DAC-resolution 16 bit
100 kHz with 1 channel, 10 kHz with 4 channels

■ 4 digital inputs and 4 digital outputs
configurable as 2 counter, 2 frequency, or 2 PWM inputs, 2 frequency or PWM output, state in or output

■ Frequency in and outputs
frequency measurement up to 1 MHz (Chronos method),
frequency output up to 10 kHz

■ Counter
For/backward counter, quadrature counter with reference zero recognition (reset/enable), up to 1 MHz

■ PWM in and output
measurement of duty cycle and frequency, output with variable frequency and/or duty cycle

■ Outputs freely scalable
■ Galvanic isolation
of I/O-signals, power supply and interface
Isolation voltage 500 VDC
Q.brixx Module A123
 Download
■ 4 universal analog input channels
voltage, current, resistance, potentiometer, Pt100, Pt1000, thermocouples, measuring bridges

■ Fast high accuracy digitalization
24 bit ADU, 10 kHz sample rate per channel

■ Signal conditioning
16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

■ Galvanic isolation
of I/O-signals, power supply and interface
Q.brixx Module A128
 Download

■4 galvanically isolated input channels

Voltages, ranges 40 V, 120 V, 400 V, 1200 V

■Insulation voltage 1200 VDC

short-term 5000 VDC

■Fast high accuracy digitalization

24 bit ADU,

100 kHz sample rate per channel with 2 channels,

50 kHz sample rate per channel with 4 channels

■Signal conditioning

16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

Q.brixx Module D101
 Download
■ 8 digital inputs and 8 digital outputs
configurable as counter, frequency, PWM and time inputs, frequency or PWM output, state in or output

■ State in and outputs
process- and host controlled

■ Frequency in and outputs
frequency measurement up to 1 MHz (Chronos method), frequency output up to 10 kHz

■ Counter
for/backward counter, quadrature counter with reference zero recognition (reset/enable), up to 1 MHz

■ PWM in and outputs
measurement of duty cycle and frequency, output with variable frequency and/or duty cycle

■ Time measurement

■ Galvanic isolation
of I/O-signals, power supply and interface
Isolation voltage 500 VDC


Q.brixx Module A124
 Download

■4 galvanically isolated input channels

for non-insulated thermocouples at high potential

■Insulation voltage 1200 VDC

short-term 5000 VDC

■Cold junction compensation

■Dynamic linearization

Optimum positioning of interpolation points in selected range, types B, E, J, K, L, N, R, S, T, U

■High accuracy digitalization

24 bit ADU, 10 kHz sample rate per channel with 8 active channels, sum sample rate 80 kHz

■Signal conditioning

digital filter, average, scaling, min/max storage, arithmetic, alarm




Q.brixx Module S104
 Download

■4 galvanic isolated voltages

+5 VDC, +12 VDC, +15 VDC, +24 VDC

■High possible load

each voltage is loadable with 5 W

■Combinations are possible

voltages can be connected to get combinations like 17 V or 20 V

■Galvanic isolation

each voltage is galvanic isolated with 1.5 kV
