■ 4 universal analog input channels
voltage, current, resistance, potentiometer, Pt100, Pt1000, thermocouples, measuring bridges

■ Fast high accuracy digitalization
24 bit ADU, 10 kHz sample rate per channel

■ Signal conditioning
16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm

■ RS485 fieldbus interface
up to 48 Mbps: LocalBus
up to 115.2 kbps: Modbus-RTU, ASCII

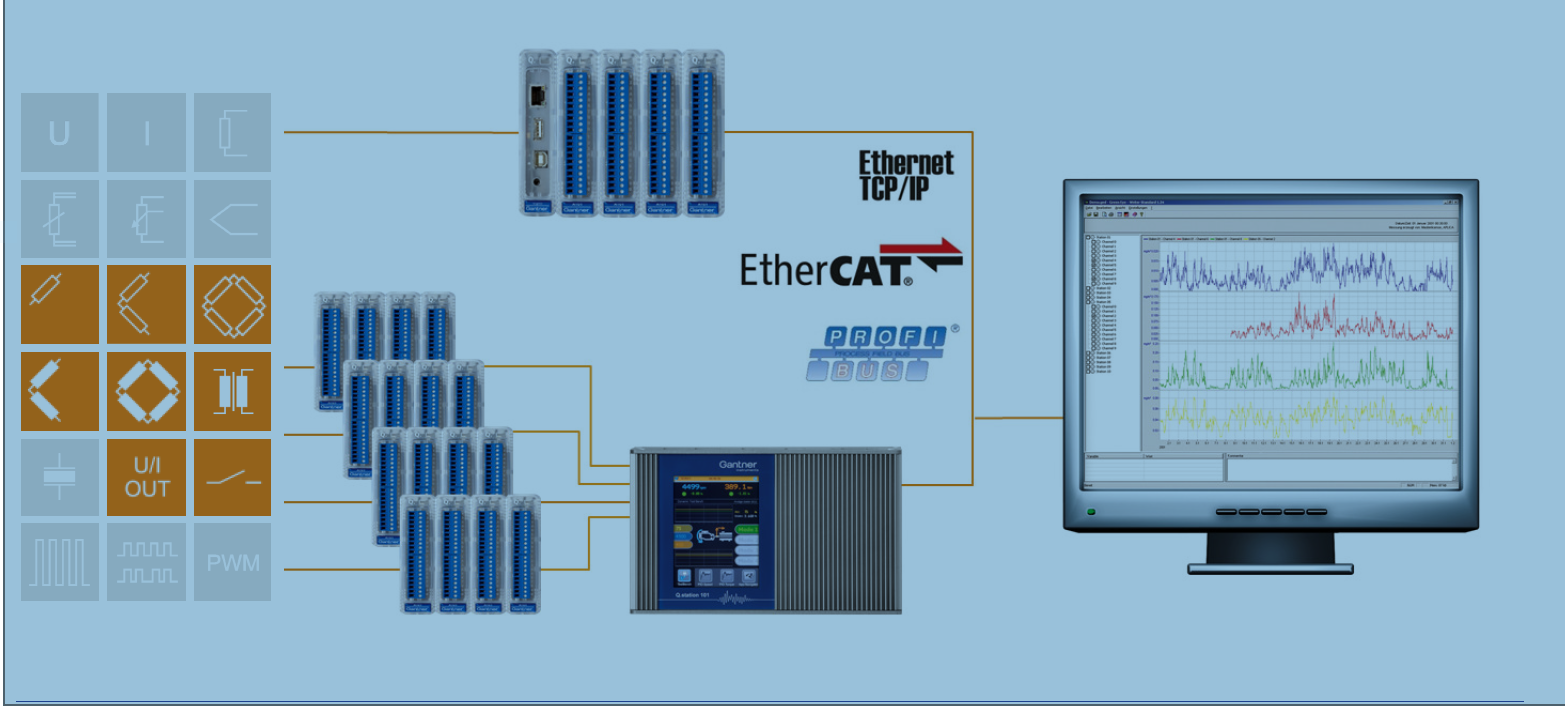

■ Connectable to any Test Controller
e.g. Q.gate or Q.pac

■ Galvanic isolation
of I/O-signals, power supply and interface

■ Electromagnetic Compatibility
according EN 61000-4 and EN 55011

■ Power supply 10…30 VDC

■ DIN rail mounting (EN 50022)
