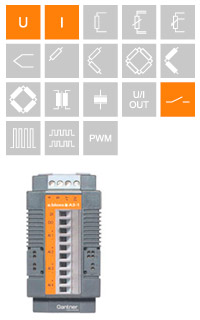

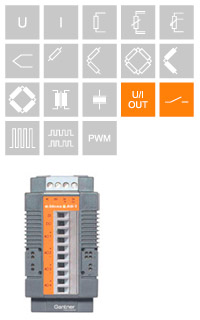

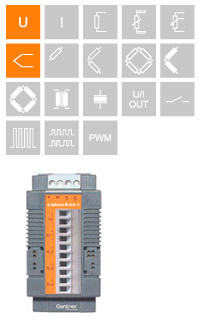

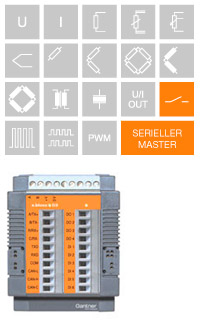

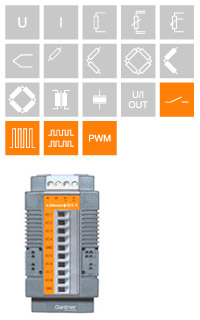

1) 다양한 입력 모듈을 DIN RAIL을 이용하여 결합 2) 빠른 처리속도와 경제적인 가격 3) Digital Relay, Analog Output을 채널별 설정 4) -20~80도 0~95%의 악조건 사용 가능 5) 전 채널 Galvanic Isolation 6) RS422,Ethernet을 이용한 원거리측정시 Noise완전제거 7) 센서 전원구동시 별도 전원공급기 불필요 8) 변형이 쉬운 LABVIEW환경 S/W, 프로그램 Source제공 9) 채널당 주파수,스트레인 5kS/s 전압1kS/s 온도 100S/s

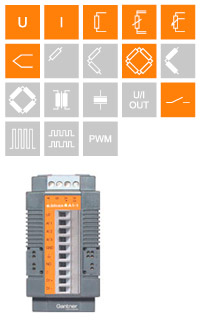

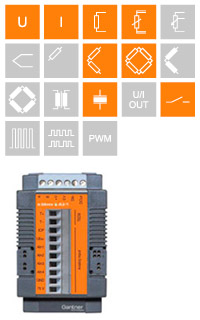

■ 1 general purpose analog input channel strain gauge, piezo resistive bridges, and ICP sensors, voltage, current
■ 1 digital input and 1 digital output Status, zero balance, memory reset, alarm, limit value, tolerance band
■ Signal conditioning Linearization, digital filtering, averaging, scaling, minimum/maximum store, true RMS value, arithmetic
■ TEDS functionality Reading of Transducer Electronic Data Sheet from a TEDS sensor module and setup of the A2 internals automatically (IEEE 1451.4 Class 2)
■ RS 485 fieldbus interface Modbus-RTU, ASCII, and Local Bus to Test Controller

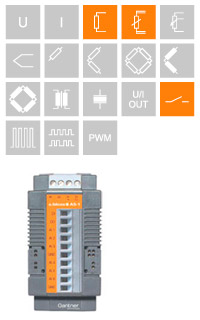

■ 2 Input channels for Cryo sensors e.g. Type Cernox or TVO
■ Sensor excitation 8 μAeff only to avoid self heading of the sensor
■ Individual linearization of the sensor characteristics Sensor specific linearization by using 64 nodes and archive in a sensor data file (import function).
■ 1 digital input, 1 digital output Status, alarm, limit value, tolerance band

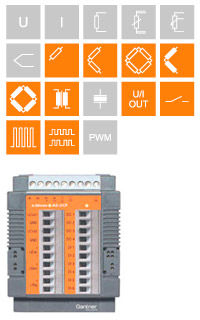

■ Universal carrier frequency sensor connection Strain gauges full, half and quarter bridges, inductive bridges, LVDT
■ 6 digital inputs and 4 digital outputs Functions definable, e.g. memory delete, frequency measurement, counter, alarm, threshold, tolerance band, status
■ 2 analog outputs ±10 V, any variable attributable, e.g. netto and envelope curve
■ ADC-conversion and signal conditioning with 19 bit and 5000/s Linearization, digital filter 4th pole, scaling, tare, min/max memory, run/hold, envelope curve, arithmetics, alarm, threshold, tolerance band
Above a certain number of measurement or I/O modules it might be useful to increase the capability and the data rate with one or several e.gates. e.g. up to 120.000 values per second will be posssible via Profibus-DP.
■ Profibus DP / EtherCAT / CANopen and Ethernet interfaces High throughput data access for synchronous or asynchronous collection
■ High speed data sampling and transmission rate Up to 48.000 real values/s, input and output data
■ Recording of a high number of channels Profibus-DP: 244 byte, max. 120 integer or 60 real values Ethernet: 1024 byte, max. 304 integer or 192 real values EtherCAT: 1024 Byte CANopen: Dynamically, regarding numbers of PDOs
■ Internal data buffer memory (16 MB) Data buffer at block transfer of measurements (FTP/Socket)
■ Open file structure Total integration in OEM automation systems, access to all configuration parameters and variables via text files and FTP
e.pac
With the e.pac any functionality can be defined with several quantities, I/O's, calculations, timing elements, controllers, and these can be stored to the e.pac measurement system. After loading the function into the e.pac it will run autarkic without PC.
■ Extensive function block library Sequences, data archive, PID-controller and further transfer functions, mathematic, numeric, Boolean combinations, function generator
■ Data memory 16 Mbytes (DL-version 128 Mbytes Flash) Configurable memory for measurements, I/Os and conditioned variables
■ Synchronizing Synchronized data acquisition and PAC functionality up to 1 kHz
■ Open file structure Total integration in OEM automation systems, access to all configuration parameters and variables via text files and FTP
■ Ethernet, Profibus (DP-version), EtherCAT (EC-version) and USB (DL-Version) interfaces Time synchronous access to synchronized and asynchronized data
■ 8 analog inputs Voltage, current, resistance measurement, Pt100/Pt1000, and power supply for external sensors
■ Analog/digital conversion Resolution of 19 bit, sample rate 1 s up to 24 h
■ 6 digital in/outputs and 2 relays outputs Status, counter, frequency measurement
■ Data memory with individual logging interval 128 MB flash, 16 MB RAM, 1 s up to 24 h individual per channel
■ Low power consumption in power sleep mode 50 mW/200 mW at a sample rate of 10 min /10 s
■ Flexible communications RS485, RS232, Ethernet TCP/IP Modem: FTP via PPP, GPRS via VPN Tunnel FTP client and FTP server email generator with data attachment
