■ 2-채널,유니버셜 입력모듈 전압,전류,저항,전위차,온도(RTD/TC),스트레인, IEPE-가속도센서 ■ 고분해능,고속샘플링 24 bit ADU, 채널당 100 kHz 샘플링 ■ 채널당 1-디지털 입력 또는 출력 입력: state, tare, memory reset 출력: state alarm, thresh hold ■ 시그널 컨디셔닝 16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm ■ TEDS class 1 과 class 2, according IEEE 1541.4 ■ RS485 필드버스 인터페이스 up to 48 Mbps: LocalBus up to 115.2 kbps: Modbus-RTU, ASCII ■ 지원되는 어떤 콘드롤러도 연결 가능 e.g. Q.gate or Q.pac ■ 완벽한 절연 입출력 신호, 전원공급 그리고 인터페이스 통신에 대해 500 VDC 까지의 완벽한 절연 ■ Electromagnetic Compatibility according EN 61000-4 and EN 55011 ■ 전원공급: 10…30 VDC ■ DIN rail mounting (EN 50022)
■ 1 analog input channel measuring bridge (full, half, quarter), IEPE-sensors, voltage, current ■ 1 analog output voltage ±10 V and current 0 up to 25 mA selectable, 100 kHz ■ Fast high accuracy digitalization 19 Bit ADC - SAR (without delay time), 100 kHz sample rate ■ 4 digital inputs, 2 digital outputse input: state, tare, memory reset output: state alarm, thresh hold ■ Signal conditioning 16 virtual channels, linearization, digital filter, average, scaling, min/max storage, RMS, arithmetic, alarm ■ TEDS class 1 and class 2, according IEEE 1541.4 ■ RS485 fieldbus-interface up to 48 Mbps: LocalBus up to 115.2 kbps: Modbus-RTU, ASCII ■ Additional RS 485 fieldbus interface to control an 8-channel multiplexer for multi channel systems, 10 Hz per channel ■ Galvanic isolation of I/O-signals, power supply and interface Isolation voltage 500 VDC ■ Electromagnetic Compatibility according EN 61000-4 and EN 55011 ■ Power supply 10…30 VDC ■ DIN rail mounting (EN 50022)
■ 8 galvanic isolated input channels differential voltage, current via shunt connector Isolation voltage 100 VDC ■ High accuracy digitalization 24 bit ADU, 100 Hz sample rate per channel with 8 active channels, sum sample rate 800 Hz ■ 2 digital in and 2 outputs input: state, tare, memory reset output: state alarm, thresh hold ■ Signal conditioning linearization, digital filter, average, scaling, min/max storage, arithmetic, alarm ■ RS485 fieldbus-interface up to 48 Mbps: LocalBus up to 115.2 kbps: Modbus-RTU, ASCII ■ Connectable to any Test Controller e.g. Q.gate or Q.pac
■ Galvanic isolation of I/O-signals, power supply and interface Isolation voltage 500 VDC ■ Electromagnetic Compatibility according EN 61000-4 and EN 55011 ■ Accuracy class 0.01 ■ Power supply 10…30 VDC ■ DIN rail mounting (EN 50022)
■ High data rate over Ethernet 128 real variables with 1 kHz (block transfer) 16 real variables with 10 kHz (block transfer) 64 real variables with 300 Hz (online)
■ Data buffer memory 12 MByte Data buffer at block transfer of measurements
■ Mathematic, control and combination features
■ PAC functionality with extensive function block library Sequences, data logger, PID-controller, transfer functions, mathematic, numeric, Boolean combinations, functions generator
■ Galvanic isolation of power supply and interfaces
■ Electromagnetic Compatibility according EN 61000-4 and EN 55011

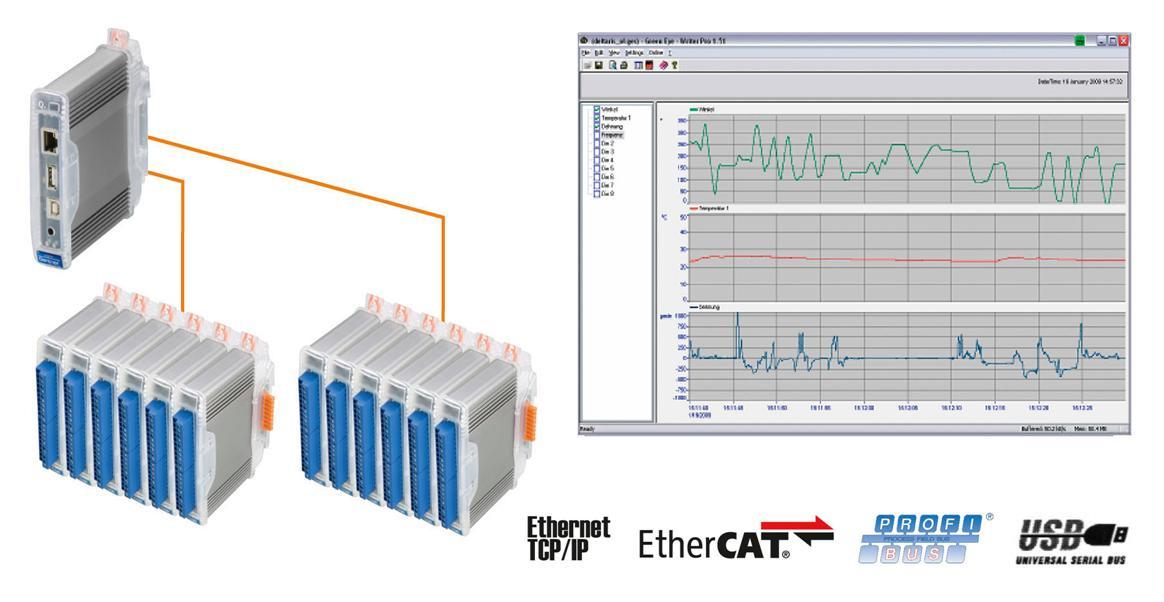

■ Connection of up to 32 Q.bloxx modules via 4 UARTS, Baud rate up to 24 MBaud each UART
■ Recording of up to 256 variables real Format 4 Byte
■ Synchronization and time stamp of measurement values
■ Ethernet interface for configuration and data output FTP, TCP/IP, UDP
■ FTP Server and FTP Client functionality configurable function
■ Optional fieldbus interface EtherCAT according specification ETG
■ High data rate over Ethernet 128 real variables with 1 kHz (block transfer) 16 real variables with 10 kHz (block transfer) 64 real variables with 300 Hz (online)
■ Data buffer memory dyn. 12 MByte, stat. 128 MByte Data buffer at block transfer of measurements
■ PAC functionality with extensive function block library
Sequences, data logger, PID-controller, transfer functions, mathematic, numeric, Boolean combinations, functions generator
■ Galvanic isolation of power supply and interfaces
■ Electromagnetic Compatibility according EN 61000-4 and EN 55011
■ Power supply 10…30 VDC
■ DIN rail mounting (EN 50022)
